I just finished testing my new amp...i rebuilt a Valve Junior to run a 6V6.
This was a V3 combo. Now it has a hand-wired board with a 6V6.
well, it was more of an exercise in amp building than anything.
next one i think will be a 5F1 to fit in my hg2 cab
in some ways the amp has gone backwards because its now running AC heaters, and it is a bit noisy when you take your hands off the strings...
oh yeah, i built it primarily as a guitar amp for my daughter.
I also built the board to be pretty much drop-in...so the original board can easily be replaced...just the hole in the chassis is a bit bigger and the retainer for the el84 wont ever go in again
of course...i'm gonna plug a harp mic into this thing...tomorrow..its 1120PM here.
Frankly, I'm just stoked to have built a hand-wired board and have it work pretty well straight up. 315v on the plate, 18.75v on the cathode, 38.7mA plate current for 11.5w plate dissipation. i think thats just within the design spec
No doubt it can suffer some improvement. i expect i'll have it apart again soon enough to fit a standby switch and a fuse on the high voltage line, and a line out...and see if i can quieten that heater...
i do think it has some nice tone for guitar though, as is. it has some better- quality parts now, if nothing else...
from this:
to this:
----------
JellyShakersFacebookPage
JellyShakersTipJar
Last Edited by SuperBee on Dec 05, 2013 11:28 PM
|
Barley Nectar
200 posts
Dec 04, 2013
6:58 AM
|
Nice job SuperBee. Is that a cathode biased amp? Or is it fixed bias? If fixed, you may have those 6V6's running a little hot. Fixed bias rule of thumb is, idle current not over 70% of plate dissipation. Cathode bias amps can run at 100% at idle. The plate current actually drops when passing signal.
Now that you got the bug, anything goes. Yahoo...BN
|
SuperBee
1562 posts
Dec 04, 2013
12:46 PM
|
Yeah it's cathode-biased BN.
I'm afraid I do have the bug. There was no real reason to do this, except I had these old 6v6 tubes. And I saw this board...
And I wanted to build a cool little amp for my daughter. The VJ combo is built in a decent little cab and the V3 speaker is reasonable too IMHO (eminence Lady Luck). As a guitar amp I think it's good for encouraging experimentation with use of pickups and guitar tone and volume, because there isn't too much you can change on the amp!
I really don't need more little amps...
But yeah, little amps it is. Now I'm looking for a broken VJ to bolt my good stock board into. And thinking about upgrading the OT in this one I just built...
----------
JellyShakersFacebookPage
JellyShakersTipJar
|
SuperBee
1563 posts
Dec 04, 2013
1:59 PM
|
Oh oh oh ...
It sounds GREAT with the harp. I just busted out a few of Dave Barrett's tongue blocking instrumentals, using A, D and G harps.
When I added a bit of LW Delay...that's a sound I'm very happy with.
But.
It's got a bunch of gain. I can't turn the volume knob very far at all before its feedback ville. Oh well, it's a 5 watt amp designed for guitar.
I'm gonna make sure to keep good records of the circuit though. I tested all the resistors before I fitted them. I know there are a couple which had drifted up quite a way from their nominated values.
Maybe I'm just full of new dad pride...but I do think this is the best (blues)harp sound I've had from an amp.
I think I might swap a 12ay7 in, 'just to find out' ;0)
----------
JellyShakersFacebookPage
JellyShakersTipJar
|
HawkeyeKane
2193 posts
Dec 04, 2013
2:26 PM
|
"It's got a bunch of gain. I can't turn the volume knob very far at all before its feedback ville. Oh well, it's a 5 watt amp designed for guitar."
Would any of the EVJ preamp mods from Lone Wolf help you there?
----------
Hawkeye Kane
|
SuperBee
1565 posts
Dec 04, 2013
5:34 PM
|
yeah i expect so Tim, but the harp tone is just incidental on this one. this is bound for my daughter to use as her guitar practice/jam amp, so i'll not make any harp-specific changes until she tires of it...which may be never.
i may build another one though... :0)
ive got my mind set on a 5F1 for my next build, but i know the stock board i removed from this epi is gonna bug me until i do something with it. definitely going to be checking out Randy's mods real soon.
i think i better leave the amp building alone for a couple of weeks now though.
----------
JellyShakersFacebookPage
JellyShakersTipJar
|
Barley Nectar
202 posts
Dec 04, 2013
7:48 PM
|

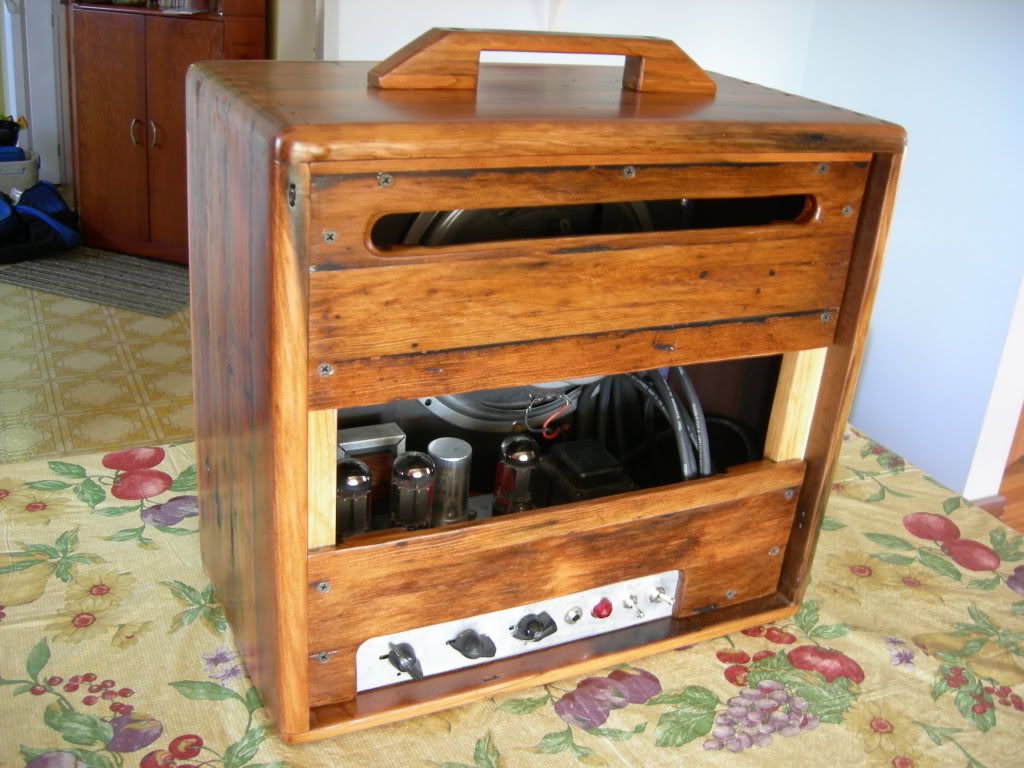

Aww Comeon. Build a Tweed Harvard. Fantastic for harp. I built my first one out of a Zenith console chassis with one 10" speaker. The wood is salvage 100 yr old flooring from a collage stage. A lot of mojo in that wood. I gave this one to my brother...
