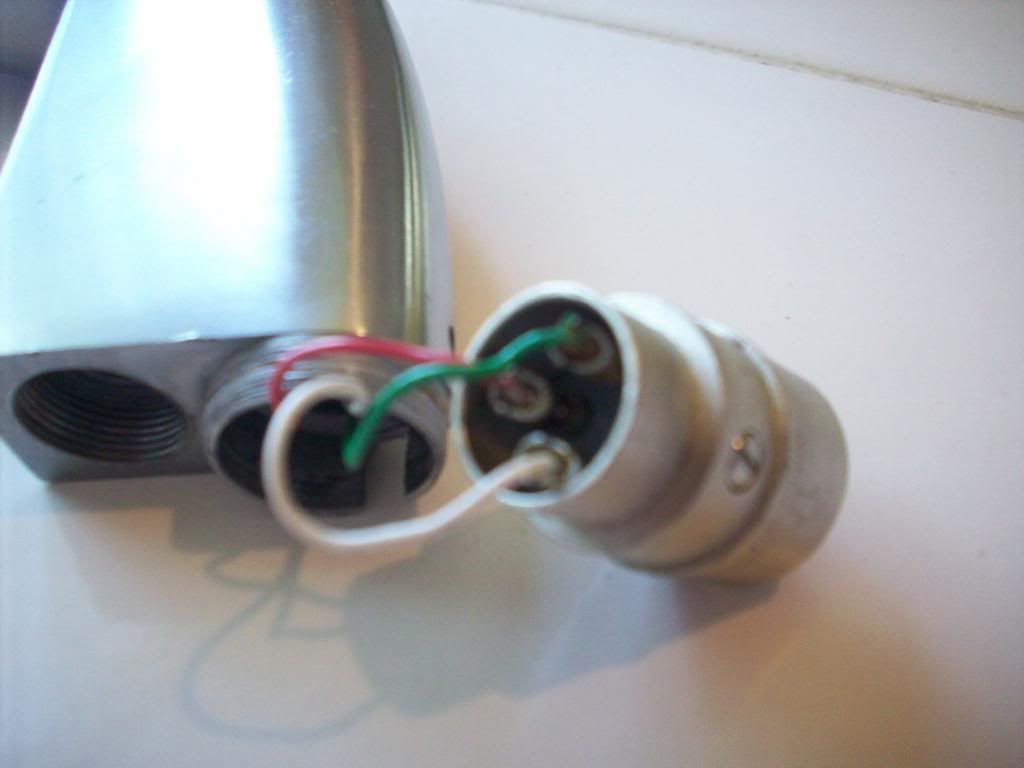

Thanks for any help. I don't know if my mic is set to Hi or Low. And if Low, how to switch these wires to Hi.
http://i1299.photobucket.com/albums/ag69/JimLedford1/002_zps6b138e18.jpg
|
Hondo
210 posts
Jun 08, 2013
8:57 AM
|
Sorry. I guess that I don't know how to embed pictures.
|
HawkeyeKane
1746 posts
Jun 08, 2013
9:50 AM
|
That appears to be low Z wiring. But your mic could have a transformer in it boosting it to high Z XLR.
----------
Hawkeye Kane
|
Greg Heumann
2186 posts
Jun 08, 2013
11:49 AM
|
Can't tell anything from that photo for sure. First, you have a mic that used to have a different, probably 3 or 4 pin female connector and has been modified to what appears to be a 3-pin XLR male. Second, green and red are not a normal color combination. On Shure and many other mics, red and blue would be the low impedance pair, while white and black would be the high impedance pair.
The only clue is that all 3 pins of the XLR connector are in use, which would SUGGEST low impedance. IF that is the case, then the signal should appear on pins 2 and 3, with pin 1 being ground, connected to the cable's shield. This is NOT a safe assumption given that someone rewired the mic - but if they knew what they were doing this would be the case. The only way to know for sure is to identify how this wiring relates to the internal transformer.
----------
----------
/Greg
BlowsMeAway Productions
See my Customer Mics album on Facebook
BlueState - my band
Bluestate on iTunes
Last Edited by Greg Heumann on Jun 08, 2013 11:51 AM
|
Hondo
212 posts
Jun 09, 2013
9:33 AM
|
Greg, What do you suggest that I do. Put it back together and leave it alone or send it to someone to look into it?
|
Kingley
2734 posts
Jun 09, 2013
9:40 AM
|
Hondo - I'd send it to Greg and have him go over it and fit a screw on connector whilst he's at it, if I were you. If it is Low-Z then Greg could probably turn it into Hi-Z for you as well. His work is top notch and his prices are very reasonable too.
|
Hondo
213 posts
Jun 09, 2013
9:44 AM
|
That's the answer that I was hoping for. Maybe Greg will chime in and have some interest in doing it.
|
Kingley
2735 posts
Jun 09, 2013
9:49 AM
|
Hondo - Just send Greg an email direct and ask him. I'm sure he'll take the job on.
|
Greg Heumann
2194 posts
Jun 09, 2013
1:31 PM
|
I'm happy to look at it of course. Email me - greg at blowsmeaway dot com - for shipping instructions.
----------
----------
/Greg
